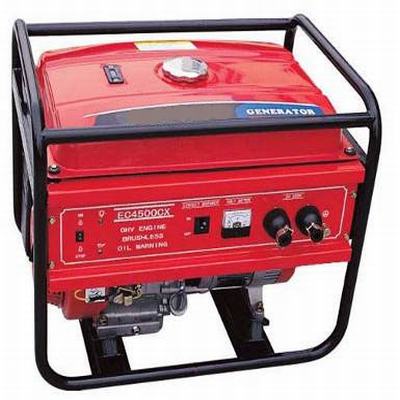

EC4500CX
Model Code侏 EC4500CX
Rated requencyHz~協l楕 50Hz
Rated Output Power(kVA) ~協竃孔楕 4.0
The Max. Output Power(kVA)恷寄竃孔楕 4.5
AC Rated Voltage (V) ~協 220
AC Rated Current (A) ~協送 18
Phase Single-phase力
DC Output (Optional) 岷送竃x塘 12V / 8.3A
Power Factor (cosφ) 孔楕咀 1.0
Engine Model CodelC侏 RY240F
Engine typelC侏 Single-cylinder, 4-stroke, OHV
Air-cooled Gasoline Engine慮廝膨_殻砠T崔L絶塀廿嗟C
Rated Output Power(kW/HP)~協竃孔楕 4.5/6.1
Rated Speed (RPM) ~協D堀 3000
Displacement (cc)電眩 243
Compression Ratio鎖s楕 8.2:1
Starting Method 啖淑 Recoil Starter 返性塀郡_
Fuel伴嗟 Automobile Unleaded Gasoline喘oU廿嗟
Fuel tank capacity (L) 嗟簇欸e 25.8
Lubrication Oil 錆嗟侏 SAE15W40 (above CC grade) CC參貧
Rotation Direction (View From Wheel) 傴D圭鬘參徨蚌^賀c Clockwiser
Noise Level [dB(A)/7m] 夐咄/7致
70~75
Low Oil Pressure Alarm System詰嗟詐幣狼y With嗤
Structure TypeY侏 Open-frame_尺塀
Dimensions (L〜W〜H) (mm) 翌侘樫雁 680〜510〜540
Packing size (L〜W〜H) (mm) 淫b樫雁 700〜530〜570
Net weight (kg) 嶷 68
In 20" Container (sets) b 20樫国 140
